4 N-Channel MOSFET H-bridge



It's actually IRF1404, nice little HEXFET costing Rs. 90.

But driving it ........ very challenging !

We tried IR2110, but mosfet driver blues were taking to much time so we jumped to a shortcut we accidentally learned at NERC 2010. Using an external battery to drive the high side mosfets :D

This is what the mosfet driver gave us

A headache ! and this ....

 Total disaster :(  we can bet you can't make an oscilloscope do that :P

Tilt Measurement

Intertial Measurement Unit and the complementary filter....

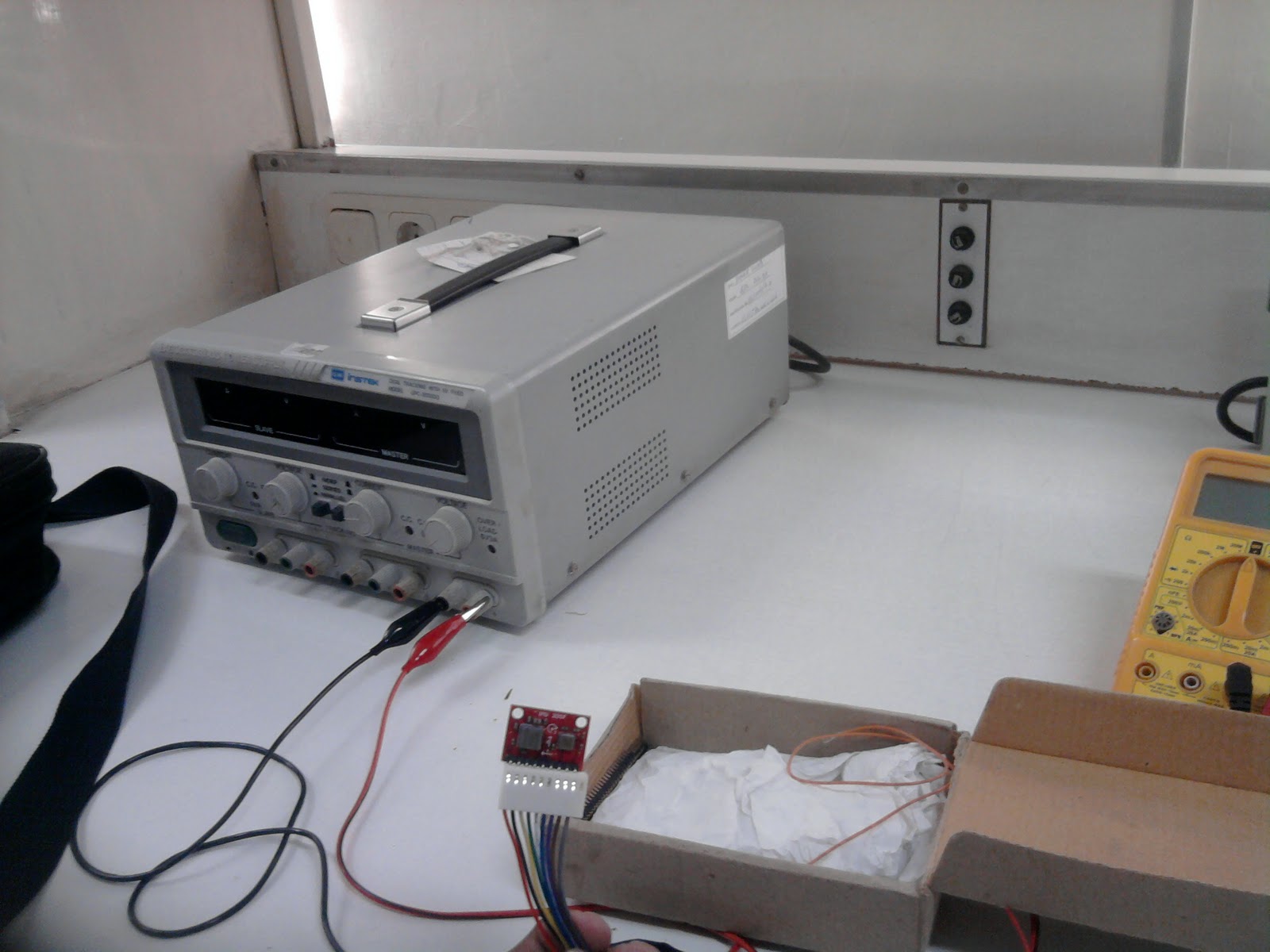

Testing the IMU with voltmeter

To estimate the correct angle of the platform, we needed the complementary filter. A DKU-5 (USB to UART-TTL) cable was used to transmit the raw accelerometer and gyro values to MATLAB. Voila ! Angle estimation turned out surprisingly well (with a lot of programming feats of course).

Here's the real time MATLAB plot result

White = accelerometer, blue = gyro, green = filtered angle

Electronic startup !

Motor Controller nightmares... right

Works perfect in theory

Toner transfer method FTW !



 Well, in reality, it doesnt..... The circuit smoked out badly since both relays dont switch at precisely the same time.

3d model on Autodesk Inventor

Illustration

Looks good in pictures, let hope it turns out that way

Rendered image of the Bottom view

You can also play around with the 3d model : 3d movable model at Autodesk Freeweel

Fix the motors and let it roll....

Washers ...... a very important invention :D used here to align the chain with wheel sprocket and for equal force distribution of motor mounting.

The timing chain experience

Motorcycles use a small timing chain for ignition timing and who knew they would be ANSI-25... When we visited our local cycle wala, he was kind enough to shorten chains for us with a lot of questioning and unwanted advice

He couldnt just believe a vehicle could balance by itself

"بھائی بندہ منہ کے بل گر جائے گا ہاہاہا ! "

We got what we needed - this chain was available in the market and we had to shorten/extend it to get the desired length

How about opening a bicycle repair shop ? :D

Shershah, Saddar, Lighthouse and PNEC Workshop

That reminds me, Karachi has become too polluted :(

One visit to Shershah kabari market was enough to stop hoping for two exactly same geared motors of our requirements although there were some pretty nice power gates, conveyer drive and german industry discarded motors(27Amperes, handling this current would be hell).

See how an expert does it ?

We purchased 250W,24V,14A electric scooter motors for PKR 1000 each. Says 2500 rpm on the plate but the tachometer measures 3000 rpm on 24v, unloaded speed maybe....It has an 11 tooth ANSI-25 sprocket. Meant to be coupled with electric scooter wheel.

This one turned out to be defective (tried placing the magnet back with epoxy but didnt work) and we had to make another covert strike on Shershah to get two more. It's always better to choose easily replaceable parts...

And here come the wheels from lighthouse... straight to the floor of EPE projects lab

The wheel had around 78 teeth. That gives almost a 7:1 gear ratio (78:11) but comes with a freehub (the ones that drive in one direction freewheel in the other). This was taken care of by expert advice from Majeed bhai :D

The freehub was disabled by welding around the bearing that allows unidirectional movement

Axle - the stick that does wonders....and of course the legendary phatta (plank)

Got the axle made to our designed dimensions from lathe machinist from Ranchor Lines (possible explanation Run=battlefield, Chor=Leave - maybe some general retreated to that place :P ) and the 10-layer ply from our very own pnec mechanical workshop.

The Operation Theater Table

Wheels and axle fitted, let's fix the motors

Assumption is the mother of screw up !!!

The roller chain looked so tiny, we completely overlooked the possibility it would be longer than needed :(

Codename: Bhai Sahab 2.0

What we need:

1. Wheels
2. Motors
3. MEMS Accelerometer & Gyroscope
4. Motor Controllers
5. Batteries
6. Lots of nuts&bolts,transistors,resistors,diodes,microcontrollers....

and all that in Karachi, the hub of Pakistan :)
Cost -  high Rs. 50,000 maybe more... but certainly not this:

Enough has been said on gyros and accelerometers by everyone who tried making a balancing vehicle/robot. First thing ordered is the IMU Combo Board - 3 Degrees of Freedom - ADXL203/ADXRS613 from creative electron, a sparkfun distributor here in Pakistan.

What actually restricts the design are the motors. Motors capable of carrying a person's weight are not really easy to find, it's wise to find the motors and make your design around it. Here's what's possible
-Wheelchair Motors (110 - 120 rpm) - can be trusted for carrying a person
-Survey Shershah scrap market for geared motors (unreliable, impossible to find two motors exactly same)
-Use motors,chain-sprocket used in electric scooters

Thinking about thinking

Got any ideas about where students make the best projects in the world ? MIT ?
and we have the idea of a self balancing vehicle :D If you cant find it, Learn To Google (LTG) :P

So this is it, simply put: A segway !

And we're supposed to make it ? Yes!
Can we ? If so many people can, surely, we can too.
How ? Good question !

Inception ;)

There are Final Year Projects, there are hobby projects and then there's a combination of both. We - ABA, WH and UR - decided to make one such project in March 2012. And here we go.....
